$Applications of Refraction$

Introduction

When light passes from one transparent medium into another transparent medium, it undergoes a phenomenon known as refraction. Refraction is the bending of light as it passes from one medium to another with a different optical density. The behavior of light at the boundary between two transparent media is influenced by two primary factors: the incident angle of the light and the indices of refraction of the media. In this article, we will delve into the details of how these factors affect the light's behavior at the boundary.

The Incident Angle: A Crucial Factor

The incident angle, also known as the angle of incidence, is the angle at which light approaches the boundary between the two media. This angle plays a significant role in determining the behavior of light at the boundary. When light hits the boundary at a shallow angle, it tends to bend less, while a steeper angle results in more pronounced bending. This is because the light is being refracted, or bent, as it passes from one medium to another with a different optical density.

Snell's Law: A Mathematical Representation

Snell's Law is a mathematical representation of the relationship between the incident angle, the indices of refraction, and the angle of refraction. The law states that the ratio of the sines of the angles of incidence and refraction is equal to the ratio of the indices of refraction of the two media. Mathematically, this can be represented as:

n1 sin(θ1) = n2 sin(θ2)

where n1 and n2 are the indices of refraction of the two media, θ1 is the angle of incidence, and θ2 is the angle of refraction.

The Indices of Refraction: A Key Determinant

The indices of refraction of the two media are a critical factor in determining the behavior of light at the boundary. The index of refraction is a measure of a medium's optical density, with higher values indicating a greater ability to bend light. When light passes from a medium with a lower index of refraction to one with a higher index of refraction, it is bent towards the normal, resulting in a more pronounced bending. Conversely, when light passes from a medium with a higher index of refraction to one with a lower index of refraction, it is bent away from the normal, resulting in less bending.

Total Internal Reflection: A Special Case

When light passes from a medium with a higher index of refraction to one with a lower index of refraction, it is possible for the light to be completely reflected back into the first medium. This phenomenon is known as total internal reflection. It occurs when the angle of incidence is greater than the critical angle, which is the angle at which the light is refracted at 90 degrees. When the angle of incidence exceeds the critical angle, the light is completely reflected back into the first medium, resulting in no transmission of light into the second medium.

Applications of Refraction

Refraction has numerous applications in various fields, including optics, physics, and engineering. Some of the most notable applications include:

Optical Instruments: Refraction is used in the design of optical instruments such as microscopes, telescopes, and binoculars.
Lenses: Refraction is used in the design of lenses, which are used to focus light and create images.

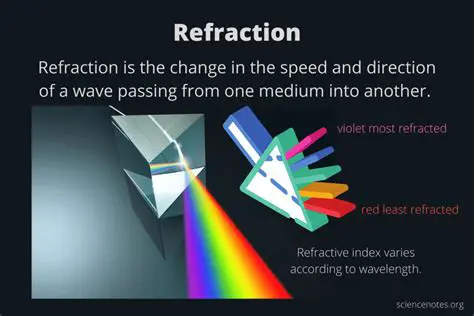

Prisms: Refraction is used in the design of prisms, which are used to split light into its component colors.
Fiber Optics: Refraction is used in the design of fiber optic cables, which transmit data as light signals through thin glass or plastic fibers.

Conclusion

In conclusion, the behavior of light at the boundary between two transparent media is influenced by two primary factors: the incident angle of the light and the indices of refraction of the media. Snell's Law provides a mathematical representation of the relationship between these factors, while the indices of refraction determine the degree of bending. Total internal reflection is a special case that occurs when light passes from a medium with a higher index of refraction to one with a lower index of refraction. Refraction has numerous applications in various fields, including optics, physics, and engineering.

Q: What is refraction, and how does it occur?

A: Refraction is the bending of light as it passes from one medium to another with a different optical density. It occurs when light encounters a boundary between two media with different indices of refraction.

Q: What is the difference between refraction and reflection?

A: Refraction is the bending of light as it passes from one medium to another, while reflection is the change in direction of light at a surface without passing through it.

Q: What is Snell's Law, and how is it used?

A: Snell's Law is a mathematical representation of the relationship between the incident angle, the indices of refraction, and the angle of refraction. It is used to calculate the angle of refraction when the incident angle and the indices of refraction are known.

Q: What is the critical angle, and how is it related to total internal reflection?

A: The critical angle is the angle at which the light is refracted at 90 degrees. When the angle of incidence exceeds the critical angle, the light is completely reflected back into the first medium, resulting in no transmission of light into the second medium.

Q: What are some common applications of refraction and total internal reflection?

A: Some common applications of refraction and total internal reflection include:

Optical Instruments: Refraction is used in the design of optical instruments such as microscopes, telescopes, and binoculars.
Lenses: Refraction is used in the design of lenses, which are used to focus light and create images.
Prisms: Refraction is used in the design of prisms, which are used to split light into its component colors.
Fiber Optics: Refraction is used in the design of fiber optic cables, which transmit data as light signals through thin glass or plastic fibers.

Q: Can refraction occur in any medium?

A: No, refraction can only occur in media with different optical densities. In a medium with a uniform optical density, light will not be refracted.

Q: Is refraction always a gradual process?

A: No, refraction can be a gradual or a sudden process, depending on the angle of incidence and the indices of refraction of the media.

Q: Can refraction be used to bend light in any direction?

A: No, refraction can only bend light in a direction that is determined by the indices of refraction of the media and the angle of incidence.

Q: Is total internal reflection always 100% efficient?

A: No, total internal reflection is not always 100% efficient. Some light may be absorbed or scattered by the medium, resulting in a loss of intensity.

Q: Can refraction be used to create images?

A: Yes, refraction can be used to create images. Lenses and prisms are examples of optical instruments that use refraction to create images.

Q: Is refraction a reversible process?

A: Yes, refraction is a reversible process. When light passes from one medium to another, it can also pass back from the second medium to the first.

Q: Can refraction be used to measure the index of refraction of a medium?

A: Yes, refraction can be used to measure the index of refraction of a medium. By measuring the angle of refraction and the angle of incidence, the index of refraction can be calculated using Snell's Law.
