Calculating the Divergence

Oct 13, 2025 by orovajewels.com 113 views

Vector Calculus: Finding the Divergence of a Vector Field

In this article, we will explore the concept of divergence in vector calculus, which is a fundamental tool in physics and engineering. We will use the given vector field ${\mathbf{A} = x^2 z \mathbf{i} - 2 y^3 z^2 \mathbf{j} + x y^2 z \mathbf{k}}$ and the scalar function ${\psi = 2 x^3 y^2 z^4}$ to find the divergence of the vector field at a specific point.

What is Divergence?

Divergence is a measure of how much a vector field is "spreading out" or "diverging" from a point. It is a scalar value that represents the net flow of a vector field out of a given point. In other words, it measures the amount of "source" or "sink" at a point in the vector field.

Mathematical Definition

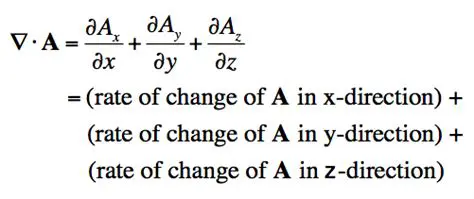

The divergence of a vector field ${\mathbf{A} = A_1 \mathbf{i} + A_2 \mathbf{j} + A_3 \mathbf{k}}$ is defined as:

${ \operatorname{div} \mathbf{A} = \frac{\partial A_1}{\partial x} + \frac{\partial A_2}{\partial y} + \frac{\partial A_3}{\partial z} }$

Calculating the Divergence

To find the divergence of the vector field ${\mathbf{A}}$ , we need to calculate the partial derivatives of each component with respect to their respective variables.

For the ${x}$ -component, we have:

${ \frac{\partial A_1}{\partial x} = \frac{\partial (x^2 z)}{\partial x} = 2 x z }$

For the ${y}$ -component, we have:

${ \frac{\partial A_2}{\partial y} = \frac{\partial (-2 y^3 z^2)}{\partial y} = -6 y^2 z^2 }$

For the ${z}$ -component, we have:

${ \frac{\partial A_3}{\partial z} = \frac{\partial (x y^2 z)}{\partial z} = x y^2 }$

Finding the Divergence at a Point

Now that we have the partial derivatives, we can find the divergence of the vector field at the point ${(2, -3, 1)}$ .

Substituting the values of ${x}$ , ${y}$ , and ${z}$ into the partial derivatives, we get:

${ \frac{\partial A_1}{\partial x} = 2 (2) (1) = 4 }$

${ \frac{\partial A_2}{\partial y} = -6 (-3)^2 (1)^2 = -54 }$

${ \frac{\partial A_3}{\partial z} = (2) (-3)^2 = 18 }$

Adding these values together, we get:

${ \operatorname{div} \mathbf{A} = 4 - 54 + 18 = -32 }$

In this article, we used the given vector field ${\mathbf{A} = x^2 z \mathbf{i} - 2 y^3 z^2 \mathbf{j} + x y^2 z \mathbf{k}}$ and the scalar function ${\psi = 2 x^3 y^2 z^4}$ to find the divergence of the vector field at the point ${(2, -3, 1)}$ . We calculated the partial derivatives of each component with respect to their respective variables and added them together to find the divergence.

Divergence is a fundamental concept in physics and engineering, and it has many practical applications. Here are a few example use cases:

Fluid Dynamics: Divergence is used to describe the flow of fluids, such as water or air, in a given region.
Electromagnetism: Divergence is used to describe the electric and magnetic fields in a given region.
Thermodynamics: Divergence is used to describe the flow of heat in a given region.

Divergence: A measure of how much a vector field is "spreading out" or "diverging" from a point.
Vector Field: A mathematical representation of a vector quantity, such as velocity or electric field, in a given region.
Scalar Function: A mathematical function that takes a scalar value as input and returns a scalar value as output.

Vector Calculus: A branch of mathematics that deals with the study of vector fields and their properties.
Divergence Theorem: A mathematical theorem that relates the divergence of a vector field to the flow of the vector field out of a given region.
Green's Theorem: A mathematical theorem that relates the divergence of a vector field to the curl of the vector field.
Vector Calculus: Divergence Q&A

In our previous article, we explored the concept of divergence in vector calculus and used the given vector field ${\mathbf{A} = x^2 z \mathbf{i} - 2 y^3 z^2 \mathbf{j} + x y^2 z \mathbf{k}}$ to find the divergence of the vector field at a specific point. In this article, we will answer some frequently asked questions about divergence and provide additional examples to help solidify your understanding of this important concept.

Q: What is the physical meaning of divergence?

A: Divergence is a measure of how much a vector field is "spreading out" or "diverging" from a point. It represents the net flow of a vector field out of a given point.

Q: How is divergence related to the curl of a vector field?

A: The divergence of a vector field is related to the curl of the vector field through the vector calculus identity:

${ \operatorname{div} \mathbf{A} = \nabla \cdot \mathbf{A} = \frac{\partial A_1}{\partial x} + \frac{\partial A_2}{\partial y} + \frac{\partial A_3}{\partial z} }$

${ \operatorname{curl} \mathbf{A} = \nabla \times \mathbf{A} = \left( \frac{\partial A_3}{\partial y} - \frac{\partial A_2}{\partial z} \right) \mathbf{i} + \left( \frac{\partial A_1}{\partial z} - \frac{\partial A_3}{\partial x} \right) \mathbf{j} + \left( \frac{\partial A_2}{\partial x} - \frac{\partial A_1}{\partial y} \right) \mathbf{k} }$

Q: What is the relationship between divergence and the Laplacian of a scalar function?

A: The Laplacian of a scalar function ${\psi}$ is defined as:

${ \Delta \psi = \nabla^2 \psi = \frac{\partial^2 \psi}{\partial x^2} + \frac{\partial^2 \psi}{\partial y^2} + \frac{\partial^2 \psi}{\partial z^2} }$

The Laplacian of a scalar function is related to the divergence of the gradient of the scalar function:

${ \Delta \psi = \nabla \cdot \nabla \psi = \operatorname{div} \nabla \psi }$

Q: Can you provide an example of how to use divergence in a real-world application?

A: Yes, here's an example of how to use divergence in a real-world application:

Suppose we have a vector field ${\mathbf{A}}$ that represents the velocity of a fluid in a given region. We can use the divergence of the vector field to determine the net flow of the fluid out of a given point. If the divergence is positive, it means that the fluid is flowing out of the point. If the divergence is negative, it means that the fluid is flowing into the point.

Example Use Case: Fluid Dynamics

Suppose we have a vector field ${\mathbf{A} = x^2 z \mathbf{i} - 2 y^3 z^2 \mathbf{j} + x y^2 z \mathbf{k}}$ that represents the velocity of a fluid in a given region. We can use the divergence of the vector field to determine the net flow of the fluid out of a given point.

To find the divergence of the vector field, we need to calculate the partial derivatives of each component with respect to their respective variables.

For the ${x}$ -component, we have:

${ \frac{\partial A_1}{\partial x} = \frac{\partial (x^2 z)}{\partial x} = 2 x z }$

For the ${y}$ -component, we have:

${ \frac{\partial A_2}{\partial y} = \frac{\partial (-2 y^3 z^2)}{\partial y} = -6 y^2 z^2 }$

For the ${z}$ -component, we have:

${ \frac{\partial A_3}{\partial z} = \frac{\partial (x y^2 z)}{\partial z} = x y^2 }$

Adding these values together, we get:

${ \operatorname{div} \mathbf{A} = 2 x z - 6 y^2 z^2 + x y^2 }$

In this article, we answered some frequently asked questions about divergence and provided additional examples to help solidify your understanding of this important concept. We also explored the relationship between divergence and the curl of a vector field, as well as the relationship between divergence and the Laplacian of a scalar function. We hope that this article has been helpful in your understanding of vector calculus and its applications.
