Mastering Cisco ASA IPsec Tunnel Status: Essential Commands for Network Engineers

In the intricate world of network security, ensuring the robust and reliable operation of Virtual Private Networks (VPNs) is paramount. For organizations relying on Cisco Adaptive Security Appliances (ASAs) to establish secure site-to-site or remote access IPsec tunnels, understanding how to effectively check and verify their status is a non-negotiable skill. This article delves deep into the most critical Cisco ASA commands that empower network engineers to gain immediate insights into their IPsec tunnel’s health, troubleshoot connectivity issues, and proactively maintain a secure network perimeter. We’ll explore the syntax, output interpretation, and practical application of these commands, transforming you into a more proficient ASA administrator.

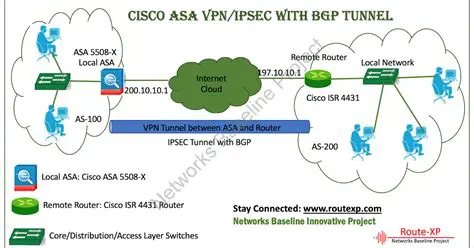

The Foundation: Why Monitoring IPsec Tunnel Status is Crucial

Before we dive into the specific commands, let’s establish why diligently monitoring your IPsec tunnel status is so vital. IPsec tunnels form the backbone of secure communication for countless businesses, encrypting sensitive data as it traverses untrusted networks. When an IPsec tunnel goes down, or experiences degradation, it can lead to significant disruptions, impacting business operations, data integrity, and user productivity. Imagine a financial institution unable to process transactions due to a downed VPN, or a remote workforce cut off from critical resources. These scenarios highlight the immediate and tangible consequences of an unreliable VPN. Proactive monitoring allows you to identify and address potential issues before they escalate into full-blown outages. This involves not just knowing if a tunnel is up, but understanding its operational state, the security parameters in use, and any underlying errors that might be hindering its performance. Furthermore, in an increasingly complex threat landscape, ensuring that your IPsec tunnels are configured correctly and operating as intended is a fundamental layer of defense against unauthorized access and data breaches. The ability to quickly verify the status of these tunnels is therefore a cornerstone of effective network security management.

Key reasons for constant IPsec tunnel status monitoring include:

Maintaining Business Continuity: Preventing service interruptions and ensuring seamless data flow.
Enhancing Security Posture: Verifying that encryption and authentication mechanisms are functioning correctly.
Rapid Troubleshooting: Quickly pinpointing the cause of connectivity issues when they arise.
Performance Optimization: Identifying potential bottlenecks or suboptimal configurations.
Compliance Requirements: Meeting regulatory mandates that often require secure and reliable network connections.

The Core Command: `show crypto ipsec sa`

The show crypto ipsec sa command is undoubtedly the workhorse for inspecting IPsec Security Associations (SAs) on a Cisco ASA. Security Associations are the logical connections that define the security parameters (encryption, hashing algorithms, keys, lifetimes) for a particular IPsec tunnel. Without a valid SA, no secure communication can occur. This command provides a comprehensive, albeit dense, overview of all active IPsec SAs. When executed, it will list each established IPsec tunnel and detail its current state. The output is structured and contains critical information such as the local and remote tunnel endpoints, the encryption and authentication algorithms being used, the number of packets that have been encrypted and decrypted, and the remaining lifetime of the SA. Pay close attention to the local-id and remote-id fields, which typically represent the IP addresses of the tunnel endpoints. The inquirer and responder roles indicate which side initiated the SA negotiation. The spi (Security Parameter Index) is a unique identifier for each SA. Crucially, this command will also show the status of the SA, which is usually ‘active’ if the tunnel is up and functioning. If an SA is not present or shows a status other than active, it’s a strong indicator of a problem. show crypto ipsec sa is your first line of defense when diagnosing IPsec issues. It’s essential to familiarize yourself with the typical output for your established tunnels so that deviations are immediately apparent. Understanding the various states and parameters presented will equip you to make informed decisions about further troubleshooting steps. For instance, if you see SAs being established and torn down rapidly, it suggests a negotiation failure, possibly due to mismatched Phase 1 or Phase 2 parameters. Conversely, if SAs are active but no traffic is flowing, the issue might lie with the crypto map configuration, access lists, or routing.

Key output fields to scrutinize:

local-id: The local IP address of the ASA participating in the tunnel.
remote-id: The remote IP address of the peer ASA or VPN gateway.
inbound spi/outbound spi: Security Parameter Indexes for incoming and outgoing traffic.
proto: The protocol used (ESP for encryption, AH for authentication).
alg: The encryption algorithm (e.g., AES-256).
auth: The authentication algorithm (e.g., SHA256).
life: The lifetime of the SA (time-based or data-based).
status: The current state of the SA (e.g., ‘active’).

Diving Deeper: `show crypto ipsec sa detail`

While show crypto ipsec sa provides a good overview, the show crypto ipsec sa detail command offers a more granular view into the intricacies of each IPsec SA. This command is invaluable when you need to troubleshoot complex issues or gain a deeper understanding of the negotiation process and operational parameters. It expands upon the information provided by the basic command, revealing more specific details about the IKE (Internet Key Exchange) phase, the policy settings, and counters for various events and errors. For instance, this command can show you the number of rekeying attempts, the number of packets dropped due to invalid SAs, or the number of fragmentation events. It also provides information about the IKE version being used and the specific Diffie-Hellman group negotiated for key exchange. Understanding these finer details can be critical in diagnosing why a tunnel might be flapping or why traffic isn’t traversing as expected. When you are facing intermittent connectivity or performance degradations, running show crypto ipsec sa detail allows you to examine the low-level operational statistics. You can observe how many Security Associations have been established and torn down over time, which can indicate instability in the tunnel. The command also sheds light on the specific encryption and authentication algorithms negotiated for both Phase 1 (IKE) and Phase 2 (IPsec) of the tunnel establishment process. Mismatches in these parameters are a very common cause of IPsec tunnel failures. By examining the output of show crypto ipsec sa detail, you can confirm if both peers are agreeing on the same security protocols. Moreover, this command provides visibility into the state of the IKE Security Associations (ISAs) which are the precursor to IPsec SAs. If there are issues establishing the ISAs, the IPsec SAs will never be formed. This command is particularly useful for identifying issues related to NAT-Traversal, Perfect Forward Secrecy (PFS), or specific cipher suites that might be causing negotiation failures. The detail keyword is your best friend when the basic command isn’t enough. It provides the diagnostic depth required to resolve perplexing IPsec problems.

Additional insights from show crypto ipsec sa detail include:

IKE version and Diffie-Hellman group negotiated.
Counters for encryption, decryption, and authentication successes and failures.
Information about rekeying attempts and IPsec SA lifetimes.
Details on specific IKE attributes and payloads.

Verifying Phase 1 and Phase 2 Configuration with `show crypto isakmp sa`

While IPsec SAs (crypto ipsec sa) deal with the actual data encryption, the Internet Key Exchange (IKE) process establishes the initial secure channel for negotiating these IPsec SAs. The show crypto isakmp sa command is used to check the status of these IKE Security Associations. This command is crucial for troubleshooting Phase 1 issues, which are the initial negotiations that must succeed before IPsec SAs can be established. A successful Phase 1 negotiation results in an ‘MM_ACTIVE’ or ‘QM_IDLE’ state for the ISAKMP SA, indicating that the peers have authenticated each other and agreed on the parameters for Phase 2. If you see errors or incomplete states here, it means the fundamental authentication and key agreement process is failing. This could be due to incorrect pre-shared keys, mismatched IKE proposals (encryption, hashing, authentication, Diffie-Hellman group), or network connectivity issues preventing the IKE packets from reaching the peer. This command acts as a gateway to understanding the early stages of your IPsec tunnel establishment. If show crypto ipsec sa shows no SAs, but show crypto isakmp sa shows active ISAKMP SAs, then the problem likely lies in Phase 2 IPsec SA negotiation. Conversely, if show crypto isakmp sa shows no active ISAKMP SAs, then the issue is with Phase 1, and you need to focus your troubleshooting there. Examining the state column is paramount. States like ‘MM_WAIT_MSG2’, ‘QM_CRITICAL’, or ‘REKEY’ can indicate specific negotiation problems or ongoing rekeying processes. The show crypto isakmp sa command is your indispensable tool for diagnosing and resolving Phase 1 IKE failures. Understanding the different states within this command’s output will significantly speed up your ability to pinpoint the root cause of tunnel establishment problems, ensuring that your secure communication channels can be brought online efficiently and reliably. It provides the necessary visibility into the initial handshake that lays the groundwork for secure data transmission.

Key states to look for in show crypto isakmp sa output:

MM_ACTIVE: Main Mode negotiation is complete, and ISAKMP SA is active.
QM_IDLE: Quick Mode negotiation is complete, and IPsec SA is established.
MM_WAIT_MSG2: Waiting for the second message in the Main Mode exchange.
REKEY: SA is in the process of rekeying.

Troubleshooting Encryption Domain Mismatches: `show vpn-sessiondb detail`

When your IPsec tunnels are established but no traffic is flowing, or traffic is being unexpectedly dropped, a common culprit is a mismatch in the encryption domain. The encryption domain defines the source and destination IP subnets that should be included in the IPsec tunnel. The show vpn-sessiondb detail command, particularly when used with specific VPN types like ‘filter name ’ or ‘output ’, can provide valuable insights into active VPN sessions and their configurations, including the traffic selectors that define the encryption domain. For IPsec site-to-site tunnels, this often corresponds to the access lists defined within your crypto map. This command helps you verify if the traffic you expect to be encrypted is actually being matched by the IPsec policy. If the traffic selectors don’t align between the two tunnel endpoints, packets will not be encrypted, and thus will not traverse the tunnel, or they might be dropped by the peer. This command is your go-to for understanding how the ASA is categorizing and handling traffic for VPNs. It displays details about the connected VPN sessions, including the identity of the remote peer, the tunnel interface, and crucially, the traffic selectors. By comparing the traffic selectors shown for a particular session with the expected encryption domain defined on the peer device, you can quickly identify discrepancies. For instance, if your policy dictates that traffic from 192.168.1.0/24 to 10.10.10.0/24 should be tunneled, but the ASA reports the traffic selectors as 192.168.0.0/16 to 10.0.0.0/8, it’s a clear indication of a configuration mismatch. The show vpn-sessiondb detail command is indispensable for diagnosing traffic-related issues and ensuring that your encryption domains are correctly configured and aligned between your Cisco ASA and its VPN peers. This level of detail is critical for ensuring that all intended traffic is secured and routed appropriately across the VPN, preventing potential security vulnerabilities and network disruptions. It provides a window into the ASA’s interpretation of which traffic should be subject to VPN policies.

Crucial details to examine:

traffic-selector: The source and destination IP prefixes that define what traffic should be encrypted.
tunnel-group: The configuration group associated with the VPN session.
interface: The physical or logical interface used for the VPN tunnel.

Understanding Traffic Counters: `show crypto ipsec statistics`

Beyond just knowing if a tunnel is ‘up’ or ‘down,’ understanding the traffic flow and potential errors is vital for performance tuning and proactive maintenance. The show crypto ipsec statistics command provides valuable counters that track the number of packets encrypted, decrypted, dropped, and rekeyed for your IPsec tunnels. These statistics are invaluable for diagnosing performance issues, identifying potential denial-of-service attacks, or detecting configuration errors that lead to packet loss. For instance, if you observe a consistently high number of dropped packets, it could indicate MTU issues, fragmentation problems, or an overwhelmed VPN gateway. Similarly, if the rekey counter is incrementing rapidly, it might suggest that the SA lifetime is too short, leading to frequent re-negotiations that can impact throughput. This command offers a quantitative view of your IPsec tunnel’s activity. It allows you to move beyond qualitative assessments and leverage hard data to make informed decisions about your network. By monitoring these counters over time, you can establish baseline performance metrics and quickly identify deviations that warrant further investigation. A sudden spike in encryption or decryption errors could point to hardware issues or severe network congestion. Conversely, if the number of encrypted packets is not increasing as expected, it might suggest that traffic is not being correctly routed to the tunnel or that the encryption domain is misconfigured. The show crypto ipsec statistics command is an essential tool for network engineers seeking to optimize IPsec performance and maintain a healthy VPN infrastructure. It provides the granular data needed to identify and address bottlenecks, ensure data integrity, and guarantee the consistent, reliable operation of your secure communication channels. Its detailed metrics offer a clear picture of how your IPsec traffic is being processed and where potential issues might be lurking.

Key statistics to monitor:

packets encrypted/decrypted:
packets dropped:
rekeys:
invalid spi:

Checking Tunnel Interfaces and Routes

While the crypto commands are specific to IPsec, it’s crucial to remember that IPsec tunnels rely on underlying network infrastructure. Therefore, verifying the status of the tunnel interfaces and associated routes is a vital part of comprehensive troubleshooting.

show interface tunnel <number>: For ASA versions that support tunnel interfaces (e.g., GRE tunnels often used in conjunction with IPsec), this command will show the operational status of the tunnel interface, its IP address, and traffic statistics. While not directly for IPsec SAs, it’s relevant if your IPsec is established over a tunnel interface.
show route: This command displays the ASA’s routing table. You need to ensure that there are valid routes pointing to the remote network that the IPsec tunnel is meant to connect to. Often, a static route is configured to send traffic destined for the remote subnet towards the tunnel interface or the gateway. If this route is missing or incorrect, traffic will not be directed into the IPsec tunnel, even if the tunnel itself is established.

The synergy between crypto commands and interface/routing checks is key to a holistic understanding of your IPsec VPN’s health.

Conclusion: Empowering Network Resilience

In conclusion, mastering the Cisco ASA commands for checking IPsec tunnel status is not merely about executing a few lines of code; it’s about cultivating a proactive and informed approach to network security. The commands we’ve explored – show crypto ipsec sa, show crypto ipsec sa detail, show crypto isakmp sa, show vpn-sessiondb detail, and show crypto ipsec statistics – provide a comprehensive toolkit for diagnosing, verifying, and optimizing your IPsec VPNs. By understanding the output of these commands, you can swiftly identify tunnel status, pinpoint negotiation failures, confirm encryption domain alignment, and monitor traffic performance. This empowers you to prevent outages, enhance security, and ensure the seamless operation of your critical business communications. Regular practice and familiarity with these commands will transform you into a more confident and effective network engineer, capable of maintaining a robust and resilient secure network infrastructure. The ability to quickly and accurately assess the state of your IPsec tunnels is a fundamental skill that underpins the reliability and security of modern enterprise networks, ensuring that your data remains protected as it traverses the digital landscape. Embrace these commands, and you’ll be well-equipped to navigate the complexities of IPsec VPN management with expertise and confidence.
