Cisco ASA IPsec VPN Configuration CLI: A Comprehensive Guide

Cisco ASA IPsec VPN configuration CLI is a crucial skill for network administrators aiming to establish secure, encrypted connections. In today’s digital landscape, Virtual Private Networks (VPNs) are essential for protecting sensitive data transmitted over public networks. This comprehensive guide provides a detailed walkthrough of configuring IPsec VPNs on Cisco ASA firewalls using the command-line interface (CLI). We’ll cover everything from the basic setup to advanced configurations, ensuring a solid understanding of the process. Understanding the CLI is paramount, as it offers granular control and allows for efficient configuration changes. This article is your one-stop resource for mastering the intricacies of Cisco ASA IPsec VPN configuration CLI, empowering you to secure your network infrastructure effectively.

Understanding IPsec and its Importance

Before diving into the Cisco ASA IPsec VPN configuration CLI, it’s essential to grasp the fundamentals of IPsec itself. IPsec (Internet Protocol Security) is a suite of protocols that secures IP communications by authenticating and encrypting each IP packet of a communication session. It provides confidentiality, integrity, and authentication, making it a robust solution for protecting data in transit. The core components of IPsec include the Authentication Header (AH), Encapsulating Security Payload (ESP), and Internet Key Exchange (IKE). AH provides integrity and authentication without encryption, while ESP provides both encryption and authentication. IKE is responsible for establishing a secure channel for the exchange of security associations (SAs), which define the encryption and authentication parameters. The advantages of using IPsec are numerous, including data confidentiality, data integrity, authentication, and replay protection. By encrypting the data payload, IPsec ensures that only authorized parties can read the transmitted information. The integrity mechanism verifies that the data hasn’t been tampered with during transit. Authentication ensures that the sender and receiver are who they claim to be, and replay protection prevents attackers from intercepting and resending packets. Furthermore, IPsec is widely supported, making it a versatile choice for securing various network environments. In the context of a Cisco ASA IPsec VPN configuration CLI, these components are configured to establish secure tunnels between networks or endpoints, enabling secure remote access and site-to-site connectivity.

Authentication Header (AH) and Encapsulating Security Payload (ESP)

As we previously stated, AH and ESP are core components of IPsec. Understanding their roles is important for successful Cisco ASA IPsec VPN configuration CLI. AH provides connectionless integrity and data origin authentication for IP packets. It ensures that the data hasn’t been modified and verifies the source. ESP, on the other hand, provides both confidentiality (encryption) and authentication, making it a more comprehensive security solution. When configuring IPsec with the Cisco ASA IPsec VPN configuration CLI, you typically choose between using AH, ESP, or both. The choice depends on your security requirements and the level of protection needed. ESP is usually the preferred option because it provides encryption, protecting the data’s content from unauthorized access. When configuring ESP, you also need to select an encryption algorithm (e.g., AES, 3DES) and an authentication algorithm (e.g., SHA-256, MD5). The strength of the encryption and authentication algorithms impacts the overall security of the VPN connection. Consider the trade-offs between security and performance when selecting these algorithms. Stronger algorithms offer better security but may also consume more processing resources. Carefully choose the configuration to ensure security that meets the business needs.

Internet Key Exchange (IKE)

Internet Key Exchange (IKE) is the cornerstone of IPsec VPN establishment, and is heavily utilized during Cisco ASA IPsec VPN configuration CLI. It’s responsible for the secure exchange of cryptographic keys and the negotiation of security associations (SAs). SAs define the security parameters used for protecting the data. IKE operates in two phases: Phase 1 and Phase 2. In Phase 1, the peers establish a secure, authenticated channel to protect subsequent IKE negotiations. This phase involves negotiating parameters like the IKE version, encryption algorithm, hashing algorithm, authentication method (e.g., pre-shared key, digital certificates), and Diffie-Hellman (DH) group. Once Phase 1 is complete, a secure, authenticated channel is established. Phase 2 then establishes the IPsec SAs, which define the parameters for encrypting and authenticating the actual data traffic. This phase involves negotiating parameters like the IPsec protocol (ESP), encryption algorithm, authentication algorithm, and DH group (again, if perfect forward secrecy is desired). Understanding IKE phases is crucial when troubleshooting VPN connectivity issues. Problems in either phase can prevent the VPN from establishing. The Cisco ASA IPsec VPN configuration CLI offers commands to view the status of IKE phases, allowing you to identify and resolve configuration errors. When configuring IKE, carefully choose the encryption algorithms, hashing algorithms, and Diffie-Hellman groups to meet your security requirements. Make sure that both peers have compatible configurations to establish a successful connection. Incorrect configurations or mismatches in the settings will inevitably lead to VPN failures.

Pre-Configuration Checklist

Before you start the Cisco ASA IPsec VPN configuration CLI, you need to have a pre-configuration checklist to ensure that you are prepared. Before attempting to configure an IPsec VPN on a Cisco ASA firewall, several preliminary steps need to be taken to ensure a smooth and successful deployment. This includes gathering the necessary information and verifying the existing network infrastructure. It’s better to be prepared, so you can solve problems before they happen.

Gather Necessary Information

First, gather all the information needed for the configuration. This information is your baseline. This includes the public IP addresses of both the ASA firewall and the remote peer, the pre-shared key (if using that authentication method), the subnets that need to be reachable across the VPN tunnel, and the encryption and hashing algorithms to use. Ensure you have the details of the remote peer’s configuration, including the IKE and IPsec parameters they will use. You must also understand the topology and the routing requirements to ensure that traffic is routed correctly across the VPN. Also, the configuration will require the knowledge of the local and remote network subnets, pre-shared keys (if using them), and the desired encryption algorithms. This information forms the foundation of your configuration and allows you to establish a secure VPN tunnel. You will need to determine the specific subnets you need to connect. Understanding how these subnets interact is crucial for allowing traffic to flow. Correctly identifying this information is the first step towards a successful deployment.

Verify Network Connectivity and Configuration

Next, you will need to verify the network configuration, like connectivity to the internet. This includes checking network connectivity, ensuring basic IP connectivity between the ASA and the internet. Confirm that the ASA can reach the remote peer over the internet. Ensure that your ASA has a valid outside IP address and that it can resolve DNS names to resolve the remote peer’s public IP address. Also, confirm the ASA’s time configuration. Accurate time synchronization is important for IKE and certificate validity. If you plan to use digital certificates, ensure the ASA has access to the Certificate Authority (CA) and can successfully validate certificates. Also, you may need to check the firewall’s access lists to ensure traffic can flow between the subnets. Verify that no existing access lists or other security policies are blocking the traffic. Check the NAT configuration to ensure that the appropriate translations are in place for the VPN traffic. Also, ensure the ASA is properly licensed to support VPN functionality. Validating the ASA’s network connectivity and configuration can help avoid many common problems and speed up the deployment process.

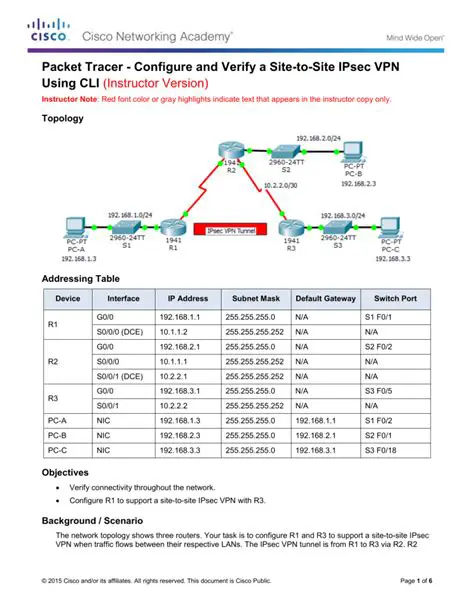

Step-by-Step Cisco ASA IPsec VPN Configuration using CLI

Now, let’s explore the step-by-step Cisco ASA IPsec VPN configuration CLI. This section provides a detailed, practical guide to configuring an IPsec VPN on a Cisco ASA firewall. We will walk you through each command and explain its purpose, ensuring that you understand the underlying concepts. By following these steps, you can establish a secure and reliable VPN connection.

Configuring IKE Phase 1

Cisco ASA IPsec VPN configuration CLI begins with configuring IKE Phase 1, which establishes a secure channel for the exchange of cryptographic keys. This phase involves setting up an IKE policy, which defines the parameters for the initial negotiation. First, enter global configuration mode. Then, define an IKE policy. Specify the encryption algorithm, hashing algorithm, authentication method, Diffie-Hellman (DH) group, and the lifetime (in seconds) for the IKE SA. Use a strong encryption algorithm like AES, a strong hashing algorithm like SHA-256, and a DH group of 14 or higher for better security. Make sure that both ends have compatible settings to avoid the connection failing. For example, to configure an IKE policy with AES encryption, SHA-256 hashing, pre-shared key authentication, DH group 14, and a lifetime of 86400 seconds, use the following commands:

configure terminal
crypto ikev1 policy 10
 encryption aes
 hash sha256
 authentication pre-share
 group 14
 lifetime 86400
exit

Next, configure the pre-shared key. Use a strong, complex key and be careful to protect it. You will need the pre-shared key on both ends of the tunnel to complete the configuration. Use the crypto ikev1 key command to set the pre-shared key, along with the peer’s public IP address. For example:

crypto ikev1 key your_pre_shared_key address 203.0.113.10

Replace your_pre_shared_key with your actual pre-shared key and 203.0.113.10 with the remote peer’s public IP address. This concludes the IKE Phase 1 configuration.

Configuring IKE Phase 2 (IPsec)

After configuring IKE Phase 1, you can start with Cisco ASA IPsec VPN configuration CLI and move on to configuring IKE Phase 2, which involves setting up the IPsec parameters that protect the actual data traffic. This involves defining a transform set, which specifies the encryption and authentication algorithms for the IPsec SA. Begin by defining the IPsec transform set. Here you will define the encryption algorithm and the authentication algorithm. For example, to create a transform set with AES encryption and SHA-256 authentication, use the following command:

crypto ipsec transform-set my_transform_set esp-aes esp-sha256

Next, create a crypto map, which is used to associate the transform set with the VPN tunnel parameters. Specify the peer’s public IP address, the IKE policy, and the transform set. For example:

crypto map outside_map 10 ipsec-isakmp
 set peer 203.0.113.10
 set transform-set my_transform_set
 match address 101

The match address command refers to an access list that defines the traffic to be encrypted. Create an access list to define the traffic you want to protect. This access list specifies the source and destination subnets. For example, to allow traffic from subnet 192.168.1.0/24 to subnet 192.168.2.0/24, create an access list:

access-list 101 permit ip 192.168.1.0 255.255.255.0 192.168.2.0 255.255.255.0

Finally, apply the crypto map to the outside interface. This allows the ASA to encrypt and decrypt traffic. The process requires a basic understanding of the protocols involved to ensure a secure connection. For example:

interface outside
 crypto map outside_map
exit

By following these steps, you will configure IKE Phase 2 to secure the data traffic.

Verifying and Troubleshooting the Configuration

After completing the Cisco ASA IPsec VPN configuration CLI, you need to test the configuration. Once the configuration is complete, it’s crucial to verify its functionality and troubleshoot any issues that may arise. Verification and troubleshooting are essential steps to ensure that your VPN is working correctly. This is where you can confirm that your hard work paid off.

Verify VPN Status and Connectivity

To verify the VPN status, use the show crypto ikev1 sa command to display the IKE SAs and verify the status. Use the show crypto ipsec sa command to display the IPsec SAs and verify the status of the IPsec connections. Also, test network connectivity by pinging a host on the remote network from a host on your local network. This will help you identify any basic connectivity problems. After the configuration, use the commands above to verify the connection. Check the output of the commands to identify if the configuration is successful. If the output does not show the expected results, you may need to troubleshoot.

Troubleshooting Common Issues

If the VPN is not working, begin troubleshooting. The most common problems involve mismatches in the IKE or IPsec configuration. Make sure that the IKE and IPsec parameters configured on both peers match exactly. If you use a pre-shared key, check that the pre-shared key is exactly the same on both ends, including capitalization and special characters. Verify that the correct traffic is being matched by the access lists. Also, verify that the routing is configured correctly on both ends, so traffic is routed correctly. Check the ASA’s logs for error messages. These messages can help you identify configuration issues. Use the debug crypto ikev1 and debug crypto ipsec commands to enable debugging. Debugging displays detailed information about the IKE and IPsec negotiation, allowing you to identify the problem. Be cautious when enabling debugging because it can generate a lot of output. Once the issue is resolved, disable the debugging commands.

Best Practices for Cisco ASA IPsec VPN Configuration

To have a secure and reliable setup using Cisco ASA IPsec VPN configuration CLI, it is very important to use best practices. Following best practices is very important and will maximize your security posture, and the VPN’s reliability. Here are some of the most important best practices to follow.

Security Considerations

Security considerations are very important for any VPN configuration. Strong encryption is very important. Always use strong encryption algorithms like AES for data encryption. Stronger encryption increases security, while weaker encryption reduces security. Make sure to use strong hashing algorithms like SHA-256 for integrity protection. Make sure to regularly review and update your ASA configuration. Regularly update the ASA’s software and firmware to address any security vulnerabilities. Update the software and firmware to increase security. Use a strong, unique pre-shared key. Never reuse the pre-shared keys. Use digital certificates. Digital certificates provide an added layer of security and are preferred over pre-shared keys. Limit the use of pre-shared keys. Always use strong Diffie-Hellman groups. Use DH groups of 14 or higher. Use access lists. Use access lists to precisely define which traffic is allowed to travel over the VPN tunnel. Use the least privilege principle. Apply the principle of least privilege. Allow only the minimum necessary traffic to pass through the VPN. Following these best practices will greatly improve the security of your VPN deployment.

Configuration Management and Monitoring

Another important aspect for the Cisco ASA IPsec VPN configuration CLI is the configuration management and monitoring of the configuration. Use a structured approach for configuration changes. Document all configuration changes. Maintain a backup of your ASA configuration. Regularly monitor your VPN tunnel status. Monitor the VPN status to detect any connection problems. Monitor for unusual traffic patterns. Implement logging and alerting. Use logging and alerting to identify any potential security incidents. Regularly review the logs. Review logs to identify potential problems. By implementing the best practices listed above, you can maximize security, ensure compliance, and minimize operational disruptions.

High Availability

High Availability is important to maintain the VPN connection. Implement redundant devices, if possible, to have high availability. Configure the ASA firewalls in an active/standby failover configuration. Use routing protocols like OSPF or BGP. The implementation of high availability ensures that you will not experience downtime.

Conclusion

In conclusion, mastering Cisco ASA IPsec VPN configuration CLI is critical for network professionals. This guide provides a comprehensive overview of the configuration process, from understanding the basics of IPsec to step-by-step configuration instructions, best practices, and troubleshooting tips. By following the guidance provided in this article, you can successfully configure and manage secure IPsec VPN connections on your Cisco ASA firewalls, protecting your network from unauthorized access and ensuring data confidentiality and integrity. The command line interface provides a powerful and flexible way to configure, manage, and monitor IPsec VPNs. Regularly review your VPN configuration and update your configurations to remain secure.

By following the best practices, you can create and maintain secure, reliable, and high-performing VPNs. IPsec VPNs are vital for securing data in transit over public networks. The CLI offers granular control and allows for more efficient management. By understanding and implementing the principles and steps outlined in this guide, you can confidently configure and troubleshoot IPsec VPNs, securing your network and protecting your valuable data. With a thorough understanding and following the best practices, you can confidently secure your network and protect your critical data.
