Formula for the Correlation Coefficient

Oct 13, 2025 by orovajewels.com 35 views

Introduction

In statistics, the correlation coefficient is a measure of the strength and direction of the linear relationship between two variables. It is a crucial concept in data analysis, as it helps us understand the relationship between two variables and make predictions about future data points. In this article, we will explore the concept of the correlation coefficient, its formula, and how to calculate it using a given dataset.

What is the Correlation Coefficient?

The correlation coefficient, denoted by the symbol $r$ , is a statistical measure that calculates the strength and direction of the linear relationship between two variables, $x$ and $y$ . It is a value between -1 and 1, where:

A value of 1 indicates a perfect positive linear relationship between the two variables.
A value of -1 indicates a perfect negative linear relationship between the two variables.
A value of 0 indicates no linear relationship between the two variables.

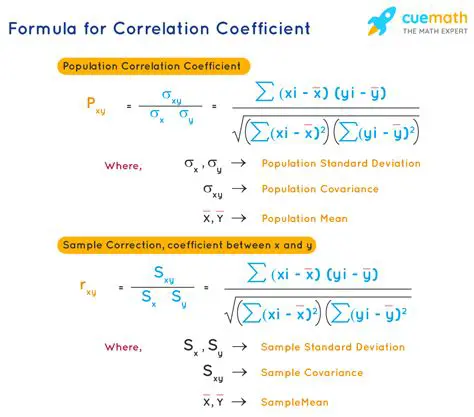

Formula for the Correlation Coefficient

The formula for the correlation coefficient is:

r = \frac{\sum_{i=1}^{n}(x_i-\bar{x})(y_i-\bar{y})}{\sqrt{\sum_{i=1}^{n}(x_i-\bar{x})^2\sum_{i=1}^{n}(y_i-\bar{y})^2}}

where:

$x_i$ and $y_i$ are the individual data points
$\bar{x}$ and $\bar{y}$ are the means of the $x$ and $y$ variables, respectively
$n$ is the number of data points

Calculating the Correlation Coefficient

To calculate the correlation coefficient, we need to follow these steps:

Calculate the means of the $x$ and $y$ variables.
Calculate the deviations from the mean for each data point.
Calculate the sum of the products of the deviations.
Calculate the sum of the squared deviations for each variable.
Calculate the correlation coefficient using the formula above.

Example Dataset

Let's use the following dataset to calculate the correlation coefficient:

$x$	$y$
4.5	1.3
4.6	1.4
4.6	1.7
5.1	1.6
5.2	1.8

Step 1: Calculate the Means

To calculate the means, we need to add up all the values and divide by the number of data points.

\bar{x} = \frac{4.5 + 4.6 + 4.6 + 5.1 + 5.2}{5} = 4.76

\bar{y} = \frac{1.3 + 1.4 + 1.7 + 1.6 + 1.8}{5} = 1.56

Step 2: Calculate the Deviations from the Mean

To calculate the deviations from the mean, we need to subtract the mean from each data point.

$x$	$x - \bar{x}$	$y$	$y - \bar{y}$
4.5	-0.26	1.3	-0.26
4.6	-0.16	1.4	-0.16
4.6	-0.16	1.7	0.14
5.1	0.34	1.6	0.04
5.2	0.44	1.8	0.24

Step 3: Calculate the Sum of the Products of the Deviations

To calculate the sum of the products of the deviations, we need to multiply the deviations for each data point and add them up.

(x_i-\bar{x})(y_i-\bar{y}) = (-0.26)(-0.26) + (-0.16)(-0.16) + (-0.16)(0.14) + (0.34)(0.04) + (0.44)(0.24)

= 0.0676 + 0.0256 - 0.0224 + 0.0136 + 0.1056

= 0.11

Step 4: Calculate the Sum of the Squared Deviations for Each Variable

To calculate the sum of the squared deviations for each variable, we need to square the deviations for each data point and add them up.

(x_i-\bar{x})^2 = (-0.26)^2 + (-0.16)^2 + (-0.16)^2 + (0.34)^2 + (0.44)^2

= 0.0676 + 0.0256 + 0.0256 + 0.1156 + 0.1936

= 0.447

(y_i-\bar{y})^2 = (-0.26)^2 + (-0.16)^2 + (0.14)^2 + (0.04)^2 + (0.24)^2

= 0.0676 + 0.0256 + 0.0196 + 0.0016 + 0.0576

= 0.172

Step 5: Calculate the Correlation Coefficient

To calculate the correlation coefficient, we need to plug in the values we calculated above into the formula.

r = \frac{0.11}{\sqrt{0.447 \times 0.172}}

= \frac{0.11}{\sqrt{0.0769}}

= \frac{0.11}{0.277}

= 0.396

Conclusion

In this article, we explored the concept of the correlation coefficient, its formula, and how to calculate it using a given dataset. We used a sample dataset to demonstrate the steps involved in calculating the correlation coefficient. The correlation coefficient is a powerful tool in data analysis, as it helps us understand the strength and direction of the linear relationship between two variables. By following the steps outlined in this article, you can calculate the correlation coefficient for your own dataset and gain insights into the relationships between your variables.

Discussion

The correlation coefficient is a widely used statistical measure in many fields, including economics, finance, and social sciences. It is a useful tool for identifying patterns and relationships in data, and for making predictions about future data points. However, it is essential to note that the correlation coefficient only measures the linear relationship between two variables and does not account for non-linear relationships.

Limitations of the Correlation Coefficient

While the correlation coefficient is a powerful tool, it has some limitations. For example:

It only measures the linear relationship between two variables and does not account for non-linear relationships.
It is sensitive to outliers and can be affected by data points that are far away from the mean.
It does not provide information about the direction of the relationship between the two variables.

Future Research Directions

There are several areas where future research could focus on improving the correlation coefficient and its applications. For example:

Developing new methods for calculating the correlation coefficient that are more robust to outliers and non-linear relationships.
Investigating the use of the correlation coefficient in machine learning and artificial intelligence applications.
Exploring the use of the correlation coefficient in fields such as medicine and public health.

Conclusion

Q: What is the correlation coefficient and why is it important?

A: The correlation coefficient is a statistical measure that calculates the strength and direction of the linear relationship between two variables. It is a crucial concept in data analysis, as it helps us understand the relationships between variables and make predictions about future data points.

Q: What is the formula for the correlation coefficient?

A: The formula for the correlation coefficient is:

r = \frac{\sum_{i=1}^{n}(x_i-\bar{x})(y_i-\bar{y})}{\sqrt{\sum_{i=1}^{n}(x_i-\bar{x})^2\sum_{i=1}^{n}(y_i-\bar{y})^2}}

where:

$x_i$ and $y_i$ are the individual data points
$\bar{x}$ and $\bar{y}$ are the means of the $x$ and $y$ variables, respectively
$n$ is the number of data points

Q: How do I calculate the correlation coefficient?

A: To calculate the correlation coefficient, you need to follow these steps:

Calculate the means of the $x$ and $y$ variables.
Calculate the deviations from the mean for each data point.
Calculate the sum of the products of the deviations.
Calculate the sum of the squared deviations for each variable.
Calculate the correlation coefficient using the formula above.

Q: What is the difference between the correlation coefficient and the covariance?

A: The correlation coefficient and the covariance are both measures of the relationship between two variables, but they are calculated differently. The covariance measures the average of the product of the deviations from the mean for each data point, while the correlation coefficient measures the standardized covariance.

Q: What is the range of the correlation coefficient?

A: The correlation coefficient ranges from -1 to 1, where:

A value of 1 indicates a perfect positive linear relationship between the two variables.
A value of -1 indicates a perfect negative linear relationship between the two variables.
A value of 0 indicates no linear relationship between the two variables.

Q: Can the correlation coefficient be used to predict future data points?

A: Yes, the correlation coefficient can be used to predict future data points, but it is essential to note that it only measures the linear relationship between two variables and does not account for non-linear relationships.

Q: What are some common applications of the correlation coefficient?

A: The correlation coefficient is widely used in many fields, including:

Economics: to analyze the relationship between economic variables such as GDP and inflation.
Finance: to analyze the relationship between stock prices and other financial variables.
Social sciences: to analyze the relationship between demographic variables such as age and income.

Q: What are some limitations of the correlation coefficient?

A: Some limitations of the correlation coefficient include:

It only measures the linear relationship between two variables and does not account for non-linear relationships.
It is sensitive to outliers and can be affected by data points that are far away from the mean.
It does not provide information about the direction of the relationship between the two variables.

Q: Can the correlation coefficient be used with non-normal data?

A: Yes, the correlation coefficient can be used with non-normal data, but it is essential to note that it may not be as accurate as it would be with normally distributed data.

Q: What are some alternative measures of correlation?

A: Some alternative measures of correlation include:

Spearman's rank correlation coefficient: a non-parametric measure of correlation that is used with ordinal data.
Kendall's tau: a non-parametric measure of correlation that is used with ordinal data.
Partial correlation coefficient: a measure of correlation that is used to analyze the relationship between two variables while controlling for the effect of a third variable.
