Understanding IPSec Parameters: A Comprehensive Guide to Secure Network Communication

In the realm of network security, IPSec (Internet Protocol Security) stands as a cornerstone for establishing secure communication channels. This comprehensive guide delves into the intricate world of IPSec parameters, exploring their significance, configuration, and impact on network security. By understanding these parameters, network administrators and security professionals can effectively implement and manage IPSec VPNs, safeguarding sensitive data and ensuring reliable connectivity.

What is IPSec?

Before diving into the specifics of IPSec parameters, it’s crucial to understand the fundamental principles of IPSec itself. IPSec is a suite of protocols that provides secure communication over IP networks. It operates at the network layer (Layer 3) of the OSI model, providing security services such as confidentiality, integrity, and authentication. Unlike other security protocols that operate at higher layers, IPSec can secure all IP traffic between two endpoints, regardless of the application.

IPSec achieves its security goals through several key mechanisms:

Authentication: Verifies the identity of the communicating parties, ensuring that only authorized users or devices can establish a connection.
Encryption: Encrypts the data being transmitted, protecting it from eavesdropping and unauthorized access.
Integrity: Ensures that the data has not been tampered with during transmission, preventing malicious modifications.
Anti-Replay Protection: Prevents attackers from capturing and replaying legitimate data packets, thwarting replay attacks.

These mechanisms are implemented through various IPSec protocols and algorithms, which are configured using specific IPSec parameters.

Key IPSec Protocols

IPSec relies on several protocols to implement its security features. Understanding these protocols is essential for configuring IPSec parameters effectively. The primary IPSec protocols include:

Authentication Header (AH): Provides authentication and integrity protection for IP packets. AH ensures that the sender of the packet is who they claim to be and that the packet has not been modified in transit. However, AH does not provide encryption.
Encapsulating Security Payload (ESP): Provides both authentication and encryption for IP packets. ESP encrypts the data payload of the packet, protecting it from eavesdropping. It can also provide authentication and integrity protection, similar to AH.
Internet Key Exchange (IKE): Establishes a secure channel for negotiating and exchanging security keys between the communicating parties. IKE is used to set up the Security Association (SA), which defines the security parameters for the IPSec connection.

Essential IPSec Parameters

Configuring IPSec involves setting numerous IPSec parameters that govern the security characteristics of the connection. These parameters determine the authentication methods, encryption algorithms, key exchange mechanisms, and other security settings. Here are some of the most essential IPSec parameters:

1. Security Association (SA)

The Security Association (SA) is the foundation of an IPSec connection. It’s a simplex (one-way) connection that defines the security parameters for communication between two endpoints. Each IPSec connection typically involves two SAs: one for inbound traffic and one for outbound traffic. The SA includes information such as the security protocol (AH or ESP), the encryption algorithm, the authentication algorithm, and the key used for encryption and authentication. Understanding and correctly configuring the SA is crucial for establishing a secure and functional IPSec connection.

2. Encryption Algorithm

The encryption algorithm specifies the method used to encrypt the data being transmitted. IPSec supports a variety of encryption algorithms, each with its own strengths and weaknesses. Common encryption algorithms include:

DES (Data Encryption Standard): An older encryption algorithm that is considered less secure due to its relatively short key length.
3DES (Triple DES): An improved version of DES that uses three DES keys, providing a higher level of security.
AES (Advanced Encryption Standard): A widely used encryption algorithm that offers strong security and performance. AES is available in different key lengths, such as 128-bit, 192-bit, and 256-bit.

The choice of encryption algorithm depends on the security requirements of the application and the performance capabilities of the devices involved. AES is generally recommended for modern IPSec deployments due to its strong security and efficiency.

3. Authentication Algorithm

The authentication algorithm specifies the method used to verify the identity of the communicating parties and ensure the integrity of the data. IPSec supports several authentication algorithms, including:

MD5 (Message Digest 5): A widely used hashing algorithm that produces a 128-bit hash value. However, MD5 is considered vulnerable to collision attacks and is not recommended for new deployments.
SHA-1 (Secure Hash Algorithm 1): Another hashing algorithm that produces a 160-bit hash value. SHA-1 is also considered vulnerable to attacks and is being phased out in favor of stronger algorithms.
SHA-2 (Secure Hash Algorithm 2): A family of hashing algorithms that includes SHA-224, SHA-256, SHA-384, and SHA-512. SHA-2 algorithms provide strong security and are recommended for use in IPSec.

Choosing a strong authentication algorithm is essential for preventing unauthorized access and ensuring data integrity.

4. Key Exchange Method

The key exchange method specifies the protocol used to negotiate and exchange security keys between the communicating parties. The most common key exchange method used with IPSec is IKE (Internet Key Exchange). IKE establishes a secure channel for exchanging keys, protecting them from eavesdropping and tampering. IKE supports various authentication methods, such as pre-shared keys, digital certificates, and Kerberos.

IKEv1 and IKEv2 are the two main versions of IKE. IKEv2 is generally preferred due to its improved security, performance, and reliability. IKEv2 also supports features such as MOBIKE (Mobile IKE), which allows for seamless roaming between different networks.

5. Perfect Forward Secrecy (PFS)

Perfect Forward Secrecy (PFS) is a security feature that ensures that the compromise of a single key does not compromise past sessions. With PFS enabled, a new key is generated for each session, making it impossible for an attacker to decrypt past traffic even if they obtain the current key. PFS is highly recommended for sensitive applications and is typically implemented using Diffie-Hellman key exchange.

Enabling PFS significantly enhances the security of IPSec connections, protecting against long-term key compromise. However, PFS can also increase the computational overhead of IPSec, so it’s important to consider the performance impact when enabling PFS.

6. Security Parameter Index (SPI)

The Security Parameter Index (SPI) is a 32-bit value that uniquely identifies each SA. The SPI is used by the receiving device to determine which SA to use for processing an incoming packet. Each IPSec connection requires two SPIs: one for inbound traffic and one for outbound traffic. The SPI is typically generated randomly and must be unique for each SA.

7. Mode of Operation: Tunnel vs. Transport

IPSec can operate in two modes: Tunnel mode and Transport mode. The choice of mode depends on the specific security requirements and network topology.

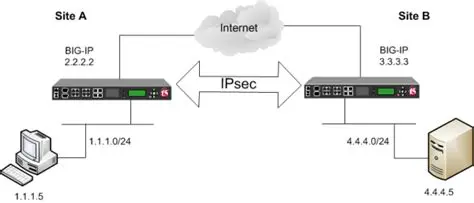

Tunnel Mode: Encrypts the entire IP packet, including the header and the data payload. Tunnel mode is typically used for VPNs, where the entire traffic between two networks needs to be protected. Tunnel mode adds a new IP header to the encrypted packet, effectively creating a tunnel through the network.
Transport Mode: Encrypts only the data payload of the IP packet, leaving the IP header unencrypted. Transport mode is typically used for securing communication between two hosts on the same network. Transport mode does not add a new IP header, which reduces the overhead compared to tunnel mode.

8. Key Lifetime

The key lifetime specifies the duration for which a security key is valid. After the key lifetime expires, a new key must be generated and exchanged. Shorter key lifetimes provide better security, as they reduce the amount of time that a compromised key can be used. However, shorter key lifetimes also increase the computational overhead of IPSec, as keys need to be generated and exchanged more frequently.

The optimal key lifetime depends on the security requirements of the application and the performance capabilities of the devices involved. A common practice is to use a key lifetime of several hours or days.

Configuring IPSec Parameters: Best Practices

Configuring IPSec parameters correctly is crucial for establishing a secure and reliable VPN. Here are some best practices to follow when configuring IPSec parameters:

Use Strong Encryption and Authentication Algorithms: Choose modern encryption algorithms such as AES and strong authentication algorithms such as SHA-2. Avoid using older algorithms such as DES, 3DES, MD5, and SHA-1, as they are considered less secure.
Enable Perfect Forward Secrecy (PFS): Enabling PFS significantly enhances the security of IPSec connections. Use Diffie-Hellman key exchange to implement PFS.
Use IKEv2: IKEv2 offers improved security, performance, and reliability compared to IKEv1. Use IKEv2 whenever possible.
Choose an Appropriate Key Lifetime: Balance security and performance by choosing an appropriate key lifetime. A key lifetime of several hours or days is often a good compromise.
Regularly Review and Update IPSec Configuration: Network security threats are constantly evolving. Regularly review and update your IPSec parameters to ensure that your VPN remains secure.
Implement Strong Password Policies: If using pre-shared keys for authentication, implement strong password policies to prevent unauthorized access.
Monitor IPSec Logs: Regularly monitor IPSec logs for any suspicious activity. This can help you detect and respond to security threats.

Troubleshooting IPSec Issues

Even with careful planning and configuration, IPSec VPNs can sometimes experience issues. Here are some common troubleshooting tips:

Verify Connectivity: Ensure that the two endpoints can communicate with each other at the IP layer. Use ping or traceroute to test connectivity.
Check Firewall Rules: Ensure that firewall rules are not blocking IPSec traffic. Allow UDP ports 500 and 4500 for IKE and ESP traffic.
Verify IPSec Configuration: Double-check the IPSec parameters on both endpoints to ensure that they are configured correctly. Pay attention to the encryption algorithm, authentication algorithm, key exchange method, and key lifetime.
Check IPSec Logs: Examine the IPSec logs on both endpoints for any error messages or warnings. This can help you identify the root cause of the issue.
Use Debugging Tools: Use debugging tools such as tcpdump or Wireshark to capture and analyze IPSec traffic. This can help you identify any problems with the IPSec protocol or configuration.

Conclusion

IPSec parameters are the building blocks of secure network communication. By understanding these parameters and following best practices, network administrators and security professionals can effectively implement and manage IPSec VPNs, safeguarding sensitive data and ensuring reliable connectivity. The world of cybersecurity continues to evolve, thus the need to constantly review and update your IPSec configurations to meet emerging threats and maintain a robust security posture.
