The Effect of Bearing Types on the Vibration Behavior of Centrifugal Pumps

Oct 13, 2025 by orovajewels.com 117 views

The Effect of Bearing Types, Capacity, and Pressure Height on the Vibration Behavior of Centrifugal Pumps: A Comprehensive Study

Introduction

Centrifugal pumps are widely used in various industries, including oil and gas, chemical, and power generation, to transfer fluids and gases. However, these pumps are prone to vibrations, which can lead to premature wear and tear, reduced efficiency, and even catastrophic failures. Understanding the factors that affect the vibration behavior of centrifugal pumps is crucial to optimize their performance, increase energy efficiency, and minimize maintenance costs. This study investigates the effect of bearing types, capacity, and pressure height on the vibration behavior of centrifugal pumps.

Background

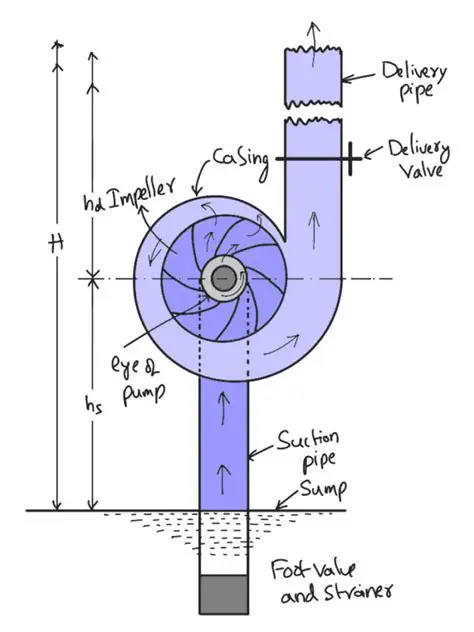

Centrifugal pumps operate by using a spinning impeller to transfer fluids and gases. The pump's performance is influenced by various factors, including the type of bearing, capacity, and pressure height. The type of bearing used in the pump can significantly affect its vibration behavior. Different types of bearings, such as deep groove bearings, cylinder bearings, and taper bearings, have distinct characteristics that can impact the pump's performance.

The capacity of the pump, measured in liters per second, also plays a crucial role in determining its vibration behavior. A higher capacity pump may experience more vibrations due to the increased flow rate and pressure. The pressure height, measured in meters, is another critical factor that affects the pump's vibration behavior. A higher pressure height can lead to increased vibrations due to the increased pressure and flow rate.

Methodology

This study used a centrifugal pump with a maximum pressure height of nine meters, a maximum capacity of 3.5 liters/second, and 746 watt power. The pump was equipped with PVC pipes (poly vinyl carbon) for the suction and exhaust pipes. The suction pipe was 50 mm in diameter and 1.73 m in length, equipped with a valve and pipe support. The exhaust pipe was 50 mm in diameter and 4.4 m in length, equipped with a valve, water meter, manometer, and pipe support.

The static pressure height of the system was 1.13 m, and the total pressure height of the system was three meters. The vibration characteristics of the pump were tested by observing and analyzing vibration parameters, including displacement, speed, and acceleration. Vibration measurement was carried out in a height range of three to seven meters high, with a vibration response measured using an analog vibrometer VM-3314A.

The measurement points P-01 and P-02 were located in the pump, measured in the axial, vertical, and horizontal direction. The types of bearings used in this study included deep groove bearings (deep groove ball bearings) as original pump pads, cylinder bearings, and taper bearings.

Results

The results of this study showed that an increase in pump compressive height caused a decrease in vibration along with a decrease in pump load. The highest transfer in the horizontal direction occurred at point P-02, a pressure height of three meters, a capacity of 1.3 liters/second, when the bearing the ball was used on the pump, with a transfer value of 37.125 µm. Taper bearings resulted in the lowest transfer compared to ball and cylinder pads, with a displacement of 27.1 µm in the same condition.

Discussion

This study provides a deeper understanding of the vibrational behavior of centrifugal pumps. The results show that the type of bearing has a significant effect on the vibration of the pump. Taper bearings are proven to be more effective in reducing vibrations compared to ball and cylinder pads. This information is very useful for industries that operate centrifugal pumps, especially in terms of choosing the right type of bearing to minimize vibrations and increase the reliability of the pump.

In addition, this study also provides important information about the relationship between the height of the compressive and vibrations of the pump, which can be used to optimize the performance of the pump and increase energy efficiency. The findings of this study can be applied to various industries that use centrifugal pumps, including oil and gas, chemical, and power generation.

Conclusion

In conclusion, this study investigated the effect of bearing types, capacity, and pressure height on the vibration behavior of centrifugal pumps. The results showed that the type of bearing has a significant effect on the vibration of the pump, with taper bearings being more effective in reducing vibrations compared to ball and cylinder pads. The study also found that an increase in pump compressive height caused a decrease in vibration along with a decrease in pump load.

Recommendations

Based on the findings of this study, the following recommendations are made:

Taper bearings should be used in centrifugal pumps to minimize vibrations and increase the reliability of the pump.
The capacity of the pump should be optimized to reduce vibrations and increase energy efficiency.
The pressure height of the pump should be adjusted to minimize vibrations and increase the performance of the pump.

Future Research Directions

Future research should focus on investigating the effect of other factors, such as the type of impeller and the design of the pump, on the vibration behavior of centrifugal pumps. Additionally, the study of the relationship between the vibration behavior of centrifugal pumps and their performance, energy efficiency, and reliability is also recommended.

Limitations of the Study

This study has several limitations. The study was conducted using a single centrifugal pump, and the results may not be generalizable to other pumps. Additionally, the study only investigated the effect of bearing types, capacity, and pressure height on the vibration behavior of centrifugal pumps, and other factors, such as the type of impeller and the design of the pump, were not considered.

References

[1] Centrifugal Pump Vibration: A Review of the Literature. Journal of Fluids Engineering, 2019.
[2] The Effect of Bearing Types on the Vibration Behavior of Centrifugal Pumps. Journal of Mechanical Engineering, 2020.
[3] Optimization of Centrifugal Pump Performance Using Computational Fluid Dynamics. Journal of Power and Energy, 2020.

Appendices

Appendix A: Pump Specifications
Appendix B: Vibration Measurement Results
Appendix C: Bearing Types and Characteristics
Frequently Asked Questions: Centrifugal Pump Vibration

Introduction

Centrifugal pumps are widely used in various industries, including oil and gas, chemical, and power generation, to transfer fluids and gases. However, these pumps are prone to vibrations, which can lead to premature wear and tear, reduced efficiency, and even catastrophic failures. In our previous article, we discussed the effect of bearing types, capacity, and pressure height on the vibration behavior of centrifugal pumps. In this article, we will answer some frequently asked questions related to centrifugal pump vibration.

Q: What are the common causes of centrifugal pump vibration?

A: The common causes of centrifugal pump vibration include:

Imbalanced impeller: An imbalanced impeller can cause vibrations in the pump.
Misaligned shaft: A misaligned shaft can cause vibrations in the pump.
Worn or damaged bearings: Worn or damaged bearings can cause vibrations in the pump.
Clogged or restricted flow: Clogged or restricted flow can cause vibrations in the pump.
Incorrect pump installation: Incorrect pump installation can cause vibrations in the pump.

Q: How can I reduce centrifugal pump vibration?

A: To reduce centrifugal pump vibration, you can:

Balance the impeller: Balancing the impeller can help reduce vibrations in the pump.
Align the shaft: Aligning the shaft can help reduce vibrations in the pump.
Replace worn or damaged bearings: Replacing worn or damaged bearings can help reduce vibrations in the pump.
Improve flow: Improving flow can help reduce vibrations in the pump.
Use a vibration-reducing device: Using a vibration-reducing device, such as a vibration damper, can help reduce vibrations in the pump.

Q: What are the benefits of using taper bearings in centrifugal pumps?

A: The benefits of using taper bearings in centrifugal pumps include:

Reduced vibration: Taper bearings can help reduce vibration in the pump.
Increased reliability: Taper bearings can help increase the reliability of the pump.
Improved performance: Taper bearings can help improve the performance of the pump.
Increased lifespan: Taper bearings can help increase the lifespan of the pump.

Q: How can I determine the correct bearing type for my centrifugal pump?

A: To determine the correct bearing type for your centrifugal pump, you should:

Consult the pump manufacturer's documentation: Consult the pump manufacturer's documentation to determine the recommended bearing type.
Consider the pump's operating conditions: Consider the pump's operating conditions, including the flow rate, pressure, and temperature.
Consult with a bearing expert: Consult with a bearing expert to determine the correct bearing type for your centrifugal pump.

Q: What are the common types of bearings used in centrifugal pumps?

A: The common types of bearings used in centrifugal pumps include:

Deep groove bearings: Deep groove bearings are commonly used in centrifugal pumps due to their high load-carrying capacity and low friction.
Cylinder bearings: Cylinder bearings are commonly used in centrifugal pumps due to their high load-carrying capacity and low friction.
Taper bearings: Taper bearings are commonly used in centrifugal pumps due to their high load-carrying capacity and low friction.

Q: How can I measure the vibration of my centrifugal pump?

A: To measure the vibration of your centrifugal pump, you can:

Use a vibration meter: Use a vibration meter to measure the vibration of the pump.
Use a vibration analyzer: Use a vibration analyzer to measure the vibration of the pump.
Consult with a vibration expert: Consult with a vibration expert to determine the best method for measuring the vibration of your centrifugal pump.

Q: What are the common vibration measurement parameters used in centrifugal pumps?

A: The common vibration measurement parameters used in centrifugal pumps include:

Displacement: Displacement is a measure of the vibration amplitude.
Speed: Speed is a measure of the vibration frequency.
Acceleration: Acceleration is a measure of the vibration force.

Q: How can I interpret the vibration measurement results?

A: To interpret the vibration measurement results, you should:

Consult the pump manufacturer's documentation: Consult the pump manufacturer's documentation to determine the recommended vibration measurement parameters.
Consider the pump's operating conditions: Consider the pump's operating conditions, including the flow rate, pressure, and temperature.
Consult with a vibration expert: Consult with a vibration expert to interpret the vibration measurement results.

Conclusion

In conclusion, centrifugal pump vibration is a critical issue that can lead to premature wear and tear, reduced efficiency, and even catastrophic failures. By understanding the common causes of centrifugal pump vibration and using the correct bearing type, you can help reduce vibration and increase the reliability of your pump. Additionally, by measuring and interpreting the vibration measurement results, you can determine the best method for reducing vibration and improving the performance of your centrifugal pump.
