The Effects of Increasing Wire Length

Oct 13, 2025 by orovajewels.com 136 views

When it comes to the behavior of electrical circuits, understanding the relationships between resistance, voltage, and current is crucial. One fundamental aspect of circuit analysis is the impact of wire length on these parameters. In this article, we will delve into the effects of increasing the length of a wire in a circuit on its resistance, voltage, and current.

The Basics: Resistance, Voltage, and Current

Before we dive into the effects of wire length, let's briefly review the basics of resistance, voltage, and current.

Resistance (R): Resistance is a measure of the opposition to the flow of electric current in a circuit. It is measured in ohms (Ω) and depends on the material, length, and cross-sectional area of the wire.
Voltage (V): Voltage, also known as electric potential difference, is the driving force that causes electric current to flow in a circuit. It is measured in volts (V) and is the potential difference between two points in a circuit.
Current (I): Current is the flow of electric charge in a circuit. It is measured in amperes (A) and is the rate at which electric charge flows through a circuit.

The Effects of Increasing Wire Length

Now that we have a basic understanding of resistance, voltage, and current, let's explore the effects of increasing the length of a wire in a circuit.

Resistance (R)

When you increase the length of a wire in a circuit, the resistance of the wire also increases. This is because resistance is directly proportional to the length of the wire. The longer the wire, the more opposition there is to the flow of electric current.

Mathematically, this can be represented by the following equation:

R = ρ * L / A

Where:

R is the resistance of the wire
ρ (rho) is the resistivity of the material
L is the length of the wire
A is the cross-sectional area of the wire

As you can see from the equation, the resistance of the wire is directly proportional to its length. Therefore, increasing the length of a wire will always result in an increase in resistance.

Voltage (V)

The voltage in a circuit is determined by the voltage source, not by the length of the wire. Therefore, increasing the length of a wire will not affect the voltage in the circuit.

In other words, the voltage remains constant regardless of the length of the wire.

Current (I)

The current in a circuit is determined by the voltage and resistance of the circuit. According to Ohm's Law, the current in a circuit is given by the following equation:

I = V / R

Where:

I is the current in the circuit
V is the voltage in the circuit
R is the resistance of the circuit

As you can see from the equation, the current in a circuit is inversely proportional to the resistance of the circuit. Therefore, increasing the resistance of the circuit (by increasing the length of the wire) will result in a decrease in current.

In summary, increasing the length of a wire in a circuit will result in an increase in resistance, a constant voltage, and a decrease in current.

Conclusion

In conclusion, increasing the length of a wire in a circuit has a significant impact on its resistance, voltage, and current. By understanding these relationships, you can better design and analyze electrical circuits.

Key Takeaways:

Increasing the length of a wire in a circuit increases its resistance.
The voltage in a circuit remains constant regardless of the length of the wire.
Increasing the length of a wire in a circuit decreases the current in the circuit.

By applying these principles, you can create more efficient and effective electrical circuits.

References:

Ohm's Law: I = V / R
Resistance equation: R = ρ * L / A

Further Reading:

Electrical Circuit Analysis
Resistance and Conductance
Voltage and Current
Frequently Asked Questions: Understanding the Effects of Wire Length on a Circuit's Resistance, Voltage, and Current ====================================================================================

In our previous article, we explored the effects of increasing the length of a wire in a circuit on its resistance, voltage, and current. In this article, we will answer some of the most frequently asked questions related to this topic.

Q: What happens to the resistance of a wire when its length is doubled?

A: When the length of a wire is doubled, its resistance also doubles. This is because resistance is directly proportional to the length of the wire.

Q: Will increasing the length of a wire affect the voltage in a circuit?

A: No, increasing the length of a wire will not affect the voltage in a circuit. The voltage in a circuit is determined by the voltage source, not by the length of the wire.

Q: What is the relationship between current and resistance in a circuit?

A: According to Ohm's Law, the current in a circuit is inversely proportional to the resistance of the circuit. This means that as the resistance of a circuit increases, the current in the circuit decreases.

Q: Can I use a longer wire to increase the current in a circuit?

A: No, using a longer wire will actually decrease the current in a circuit, not increase it. This is because the resistance of the wire increases with its length, which in turn decreases the current.

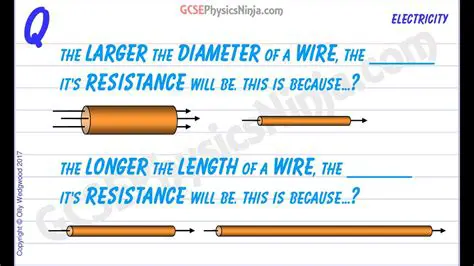

Q: What is the effect of increasing the cross-sectional area of a wire on its resistance?

A: Increasing the cross-sectional area of a wire will decrease its resistance. This is because resistance is inversely proportional to the cross-sectional area of the wire.

Q: Can I use a wire with a lower resistivity to decrease the resistance of a circuit?

A: Yes, using a wire with a lower resistivity will decrease the resistance of a circuit. This is because resistivity is a measure of the opposition to the flow of electric current in a material, and a lower resistivity means less opposition.

Q: What is the effect of increasing the temperature of a wire on its resistance?

A: Increasing the temperature of a wire will increase its resistance. This is because the resistivity of a material increases with temperature, which in turn increases the resistance of the wire.

Q: Can I use a wire with a higher temperature coefficient of resistance to decrease the resistance of a circuit?

A: No, using a wire with a higher temperature coefficient of resistance will actually increase the resistance of a circuit, not decrease it. This is because a higher temperature coefficient of resistance means that the resistance of the wire increases more rapidly with temperature.

Q: What is the effect of using multiple wires in parallel on the resistance of a circuit?

A: Using multiple wires in parallel will decrease the resistance of a circuit. This is because the resistance of a circuit is inversely proportional to the number of wires in parallel.

Q: Can I use a wire with a higher resistivity to increase the resistance of a circuit?

A: Yes, using a wire with a higher resistivity will increase the resistance of a circuit. This is because resistivity is a measure of the opposition to the flow of electric current in a material, and a higher resistivity means more opposition.

Conclusion

In conclusion, understanding the effects of wire length on a circuit's resistance, voltage, and current is crucial for designing and analyzing electrical circuits. By answering these frequently asked questions, we hope to have provided you with a better understanding of these relationships.

Key Takeaways:

Increasing the length of a wire increases its resistance.
The voltage in a circuit remains constant regardless of the length of the wire.
Increasing the length of a wire decreases the current in a circuit.
Increasing the cross-sectional area of a wire decreases its resistance.
Using a wire with a lower resistivity decreases the resistance of a circuit.
Increasing the temperature of a wire increases its resistance.
Using multiple wires in parallel decreases the resistance of a circuit.
Using a wire with a higher resistivity increases the resistance of a circuit.
