Understanding PSV: Everything You Need to Know About Pressure Safety Valves

Pressure Safety Valves (PSVs), often referred to as safety relief valves, are critical components in industrial processes. Their primary function is to protect equipment and personnel from overpressure situations. This detailed guide explores the intricacies of PSVs, covering their purpose, types, applications, and crucial maintenance practices. Understanding these aspects is paramount for anyone involved in process safety management, ensuring the reliable operation and longevity of equipment while minimizing the risk of hazardous events. The importance of PSVs cannot be overstated; they act as the last line of defense against catastrophic failures. A failure of a PSV to function correctly can lead to equipment damage, environmental contamination, and, most importantly, serious injuries or fatalities. Therefore, a thorough understanding and diligent maintenance of these valves are non-negotiable for safe and efficient operations. This article delves into the various facets of PSVs, equipping readers with the knowledge needed to make informed decisions about their application, selection, and maintenance.

What is a PSV? The Core Purpose and Function

The fundamental purpose of a PSV is to automatically release excess pressure from a system, preventing it from exceeding a predetermined set point. This overpressure can arise from various sources, including thermal expansion, runaway reactions, external fires, or pump failures. When the pressure within a vessel or system rises above the set pressure, the PSV opens, allowing the fluid (liquid, gas, or vapor) to escape, thereby reducing the pressure to a safe level. This protective action is crucial to prevent equipment damage such as vessel rupture, pipe bursts, and gasket failures, as well as to safeguard personnel from potential hazards. The design and construction of a PSV are meticulously engineered to ensure reliable operation under diverse and often challenging conditions. The valve must be capable of quickly and effectively relieving pressure, and it must also re-seat tightly once the pressure returns to an acceptable level.

PSVs are designed to be fail-safe; meaning that if any component fails, the valve should default to an open position, allowing the overpressure to vent. This is a critical safety feature that underscores the importance of proper selection, installation, and maintenance. The set pressure, which is the pressure at which the valve begins to open, is carefully chosen based on the design pressure of the protected equipment and the specific process conditions. This set pressure is typically lower than the maximum allowable working pressure (MAWP) of the protected equipment, providing a margin of safety. The relief capacity of the PSV, measured in units of flow rate (e.g., pounds per hour or cubic feet per minute), must be sufficient to handle the maximum credible overpressure scenario. The correct sizing of the PSV is essential to ensure that it can effectively protect the system under all potential operating conditions. Furthermore, the selection of the PSV materials must be compatible with the process fluid to prevent corrosion and ensure long-term reliability. Regular inspection and testing of PSVs are essential to verify their proper functioning and to identify any potential issues before they escalate into a hazardous event. The implementation of a comprehensive maintenance program, including periodic testing, inspection, and calibration, is critical to ensuring the continued reliability and effectiveness of the PSV.

Types of PSVs: A Detailed Overview

PSVs are available in various designs, each suited for specific applications and process conditions. The main categories include spring-loaded, pilot-operated, and rupture disk devices. Each type has its advantages and disadvantages, making the selection process critical. Choosing the correct type depends on factors like the process fluid, operating pressure, required flow capacity, and the specific application needs.

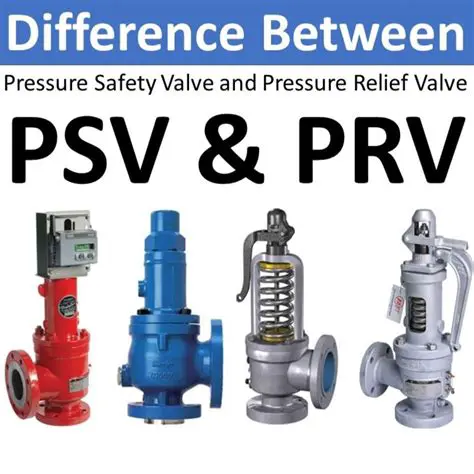

Spring-Loaded PSVs: These are the most common type of PSV. They utilize a spring to hold the valve closed against the process pressure. When the pressure exceeds the set point, the spring is overcome, and the valve opens. Spring-loaded valves are generally simple and cost-effective, making them a popular choice for many applications. They can be further categorized into direct spring-loaded and balanced spring-loaded valves. In direct spring-loaded valves, the spring directly opposes the process pressure, and this type is suitable for most general applications. Balanced spring-loaded valves, on the other hand, are designed to minimize the effect of backpressure on the set pressure and are commonly used in applications where backpressure is expected to be significant. The spring-loaded design offers reliable performance for a wide range of applications and is relatively easy to maintain.
Pilot-Operated PSVs: These are more complex and are typically used in applications requiring high capacity or tight shutoff. Pilot-operated PSVs use a pilot valve to sense the system pressure and control the main valve. The pilot valve opens when the pressure exceeds the set point, which in turn causes the main valve to open. Pilot-operated valves can offer superior performance in terms of set point accuracy and tight shutoff, but they are also more complex and may require more maintenance. The pilot valve is a small, precision-engineered component that is critical to the operation of the entire system. Pilot-operated valves are particularly well-suited for applications involving high pressures or large flow rates, where the performance of a spring-loaded valve might be insufficient.
Rupture Disks: While not technically valves, rupture disks are often used in conjunction with PSVs to provide an additional layer of protection. A rupture disk is a non-reclosing pressure-relief device that is designed to burst at a predetermined pressure. They offer a simple and cost-effective solution for overpressure protection and can be used in a wide range of applications. They are especially useful for protecting equipment against very rapid pressure increases or for applications involving highly corrosive fluids. Rupture disks are typically used as a backup to a PSV or as the primary pressure relief device when the application requires it. After a rupture disk activates, it must be replaced, making them a one-time use device. The design of rupture disks is carefully engineered to ensure accurate and reliable performance. Rupture disks are particularly well-suited for applications where a sudden and significant pressure release is required, and they can be fabricated from a variety of materials to suit the specific application. They are also useful when the process fluid is excessively viscous or contains solids that could foul a conventional valve.

Applications of PSVs: Where They Are Used

PSVs are employed across a multitude of industries and applications, wherever there is a potential for overpressure to occur. This includes chemical processing, oil and gas, power generation, and pharmaceutical manufacturing. Their use is mandated by safety regulations in many of these industries. The specific design and type of PSV chosen will vary depending on the nature of the process fluid, operating conditions, and the potential hazards involved. The applications are very broad, from simple storage tanks to complex distillation columns. The widespread use of PSVs underscores their critical role in ensuring the safe operation of industrial facilities. Understanding the specific applications of different types of PSVs is crucial for selecting the right equipment. The importance of the selection process is paramount to achieving the necessary protection for personnel and the assets involved.

Chemical Processing Plants: In chemical plants, PSVs protect reactors, storage tanks, and process piping from overpressure due to runaway reactions, thermal expansion, or other process upsets. The selection of materials for the PSV is critical to ensure compatibility with the aggressive chemicals. The type of PSV used in chemical processing plants will depend on the specific chemical being handled, the operating pressure, and the required flow capacity. Ensuring that the PSV is properly sized and maintained is essential to prevent leaks, explosions, and environmental damage.
Oil and Gas Industry: PSVs are integral to the oil and gas industry, safeguarding pipelines, storage tanks, and processing equipment. They protect against overpressure resulting from pump failures, gas expansion, or external fires. In the oil and gas industry, PSVs often operate in harsh environments, requiring robust construction and reliable performance. The selection of the PSV must take into account factors like the presence of sour gas, high temperatures, and the potential for corrosion. Regular inspection and maintenance are essential to ensure the continued reliability of PSVs in this demanding industry.
Power Generation: Power plants rely on PSVs to protect boilers, turbines, and steam piping from overpressure. These systems operate at high pressures and temperatures, making the reliable performance of PSVs essential for safety. The selection of the PSV must consider factors like the steam properties, operating pressure, and the potential for thermal shock. Regular testing and calibration of PSVs are critical to maintaining safe operating conditions. These valves are critical for the safe and efficient operation of power plants.
Pharmaceutical Manufacturing: PSVs are used in pharmaceutical manufacturing to protect reactors, storage tanks, and processing equipment from overpressure. Ensuring the PSV is made from suitable materials is crucial, to meet the strict regulations and the sterile environment standards. The selection of the PSV must consider factors like the cleanliness, operating pressure, and the required flow capacity. The PSVs must be periodically inspected and tested to ensure they are performing correctly. These valves are essential for the safe and efficient operation of pharmaceutical manufacturing plants.

Maintenance and Testing: Ensuring Proper Functioning

Regular maintenance and testing are paramount to ensure the continued reliable operation of PSVs. This includes periodic inspections, functional testing, and preventative maintenance activities. The frequency of maintenance should be determined based on the operating conditions, the type of valve, and the recommendations of the manufacturer. Proper maintenance helps to identify potential problems before they escalate, preventing costly downtime and potential safety incidents. The implementation of a comprehensive maintenance program is essential for maximizing the lifespan of PSVs and ensuring their ability to protect equipment and personnel. The process involves multiple steps to identify potential issues and ensure the valve is functioning correctly.

Inspection: Visual inspection of the PSV should be performed regularly, looking for signs of corrosion, leaks, or damage. Inspection should include checking for any signs of external damage, such as dents, cracks, or corrosion. The connections, including flanges and fittings, should be inspected for leaks. The nameplate should be reviewed to verify that the valve is installed correctly and that it meets the required specifications. The inspection process often involves removing the valve from service to allow for a more detailed examination of the internal components. It’s often helpful to document these inspections and keep track of any findings. Records of inspections and maintenance activities should be kept, including the date of the inspection, the inspector’s name, and any findings or actions taken. Any identified issues should be documented and addressed promptly.
Testing: Functional testing involves verifying the set pressure, reseating pressure, and relieving capacity of the PSV. Testing can be performed in-situ or by removing the valve and testing it on a test bench. Testing should follow the manufacturer’s recommendations and any applicable regulatory requirements. During testing, the valve is subjected to increasing pressure until it reaches its set pressure, at which point the valve should open. The set pressure should be verified to ensure it meets the requirements of the protected equipment. After the valve has opened, the pressure is reduced, and the reseating pressure is measured. The reseating pressure is the pressure at which the valve closes. The relieving capacity of the valve is also tested to ensure that it can handle the maximum credible overpressure scenario. The testing process involves careful calibration and the use of specialized equipment. The data gathered during testing can be used to identify potential problems, such as sticking, leakage, or incorrect set pressure. Any deviations from the specifications should be promptly addressed.
Preventative Maintenance: Preventative maintenance activities may include lubricating moving parts, cleaning the valve, and replacing worn components. The maintenance plan should be tailored to the specific type of PSV and the operating conditions. The lubrication of the valve can help to ensure smooth operation and prevent sticking. Cleaning the valve can help to remove any debris or buildup that could interfere with its proper functioning. Replacing worn components, such as seals and O-rings, can help to prevent leaks and ensure the valve’s long-term reliability. Preventative maintenance is a proactive approach to maintaining PSVs in optimal condition. A well-designed preventative maintenance program can significantly extend the lifespan of PSVs and reduce the risk of unexpected failures. Regular maintenance also helps ensure compliance with safety regulations and reduces the likelihood of costly repairs or replacements.

Conclusion: The Critical Importance of PSVs

PSVs are indispensable safety devices in numerous industrial applications. Understanding their purpose, types, applications, and the importance of regular maintenance is essential for ensuring safe and reliable operations. By selecting the appropriate PSV, implementing a robust maintenance program, and adhering to industry best practices, facilities can effectively protect their equipment, personnel, and the environment from the potential hazards of overpressure. The consistent monitoring, testing, and maintenance of PSVs are critical for preventing accidents, reducing downtime, and ensuring compliance with safety regulations. As technology evolves, the design and performance of PSVs continue to improve, providing even greater levels of protection. The future of pressure relief technology will focus on enhancing reliability, efficiency, and ease of maintenance. Staying informed about the latest advancements in PSV technology and best practices will continue to be a priority for ensuring operational safety and protecting the environment. The dedication to proper PSV management reflects a strong commitment to process safety and operational excellence. This detailed guide serves as a valuable resource for anyone involved in managing and maintaining pressure safety valves, contributing to safer and more sustainable industrial operations. The correct implementation of PSVs is not just a regulatory requirement; it is a fundamental aspect of responsible and ethical industrial operation.
